      READY.
      LOAD "OCTAMAX",8,1
      █

An educational toolkit for understanding how the firmware of the Elektron Octatrack works.

OCTAMAX is a reverse-engineering workspace built to study the Octatrack MKII operating system: how the update files are packed, how the code is laid out in memory, how the microkernel schedules tasks, how the sequencer drives the audio DSP — and, as a hands-on way of proving that understanding, how a few small, optional, entirely reversible behavior changes can be added to the OS image.

Everything here is for educational purposes only. No Elektron binary is redistributed. You bring your own copy of the official OS; the tools analyze it and, if you ask them to, produce a modified image byte-for-byte reproducibly from that copy.

BETA — expect bugs. This build is new and has been tested on one MKII unit. Keep your official .syx at hand: [FUNC] + power on → [TRIG 3] recovers the unit even if the OS is corrupt, because the bootloader is never touched. Your CF card, projects and samples are not affected by flashing.

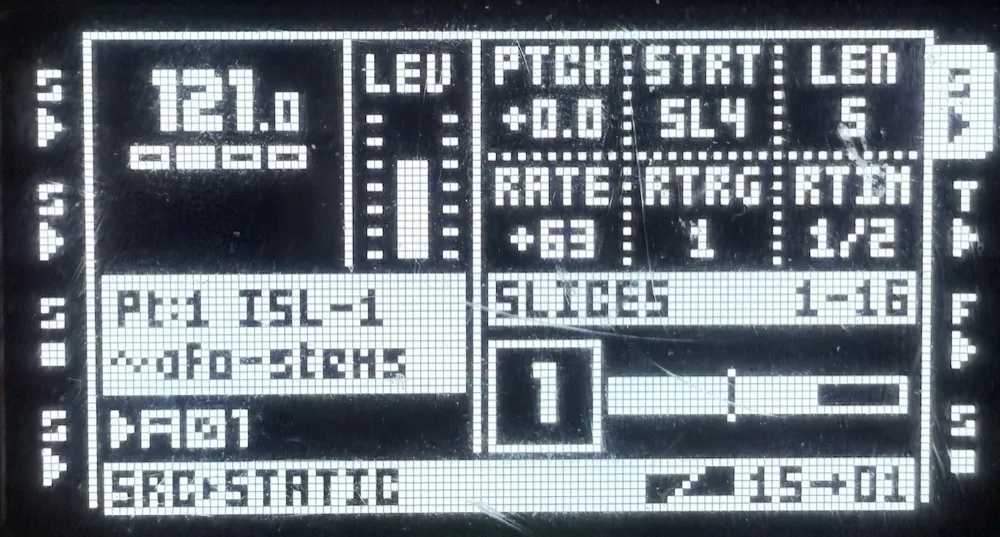

SLICE PLAYHEAD — a readable SLICES view. A new PERSONALIZE toggle replaces the 4×16 slice grid of the FUNC+[down] SLICES view with the number of the slice that is actually playing (drawn large, in a trig-key style square frame), a live progress bar fed by the audio engine's real playback position, and a marker at the slice's loop point. The trig button of the playing slice lights amber and pulses in lockstep with the tempo LED. Off by default; with the toggle off the view is stock, byte for byte. Works on high (129+) slots too. Design and addresses in DESIGN_SLICEVIEW.md.

PERSONALIZE toggles now persist. The custom switches used to reset on every power cycle (and OS upgrade): the firmware re-images their RAM window at boot and restores only the stock-sized settings block from battery SRAM. The restore length now covers the custom words and the setters write the battery shadow, so all toggles survive power cycles and OS upgrades, exactly like the stock PERSONALIZE settings. No project file format is touched. (Root cause and fix in NOTES.md, "PERSONALIZE persistence root-caused".)

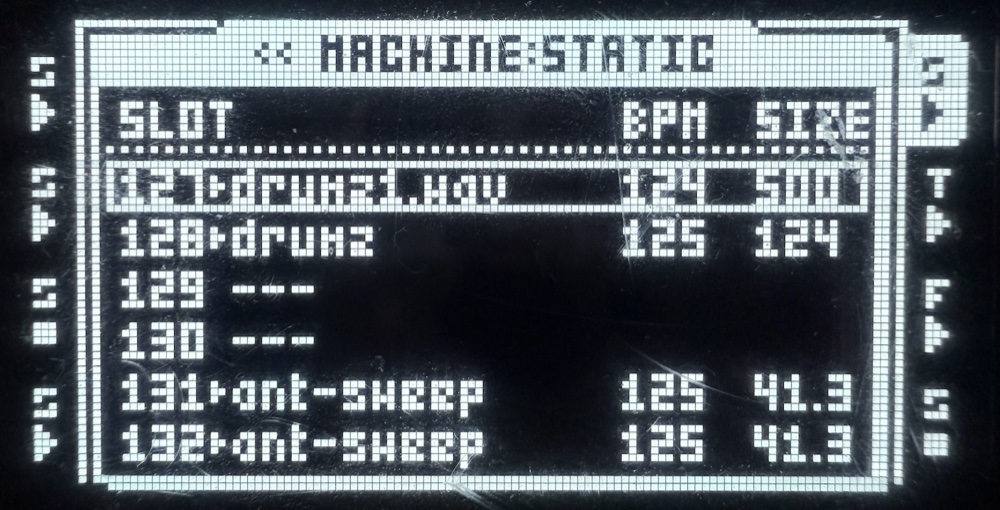

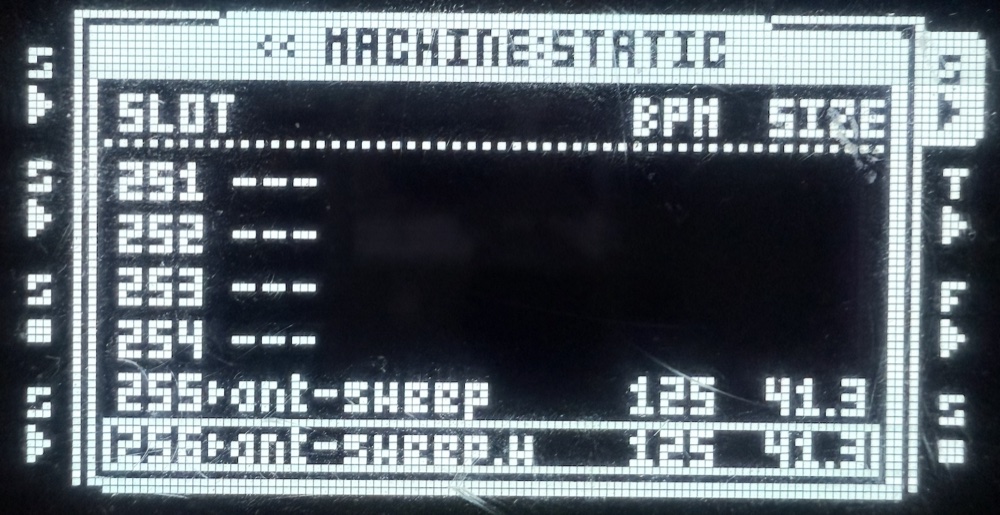

STATIC sample slots go from 128 to 256. Slots 129–256 behave like the stock ones: they load samples, keep their slice grids (including .ot sidecar files), are assignable to tracks, accept parameter locks, survive a project save/reload and a power cycle, and play on the first trig. FLEX slots and the recorder buffers are untouched.

Persistence uses the native project.work (which gains SLOT=129..256 records) plus a project.256 sidecar file next to your project. A project saved with high slots still opens on stock firmware — those slots simply come back empty.

Known limitations, and the reverse-engineering story behind each fix, are in DUAL256.md. The short version: the LOCK TRIG popup still stops at 128, so to author locks on a high slot, select it on the track first and then place trigs.

Everything from the previous release is still here, still off by default:

• Lazy transitions — on a pattern change to a different Part, sounding tracks keep the previous Part's sound instead of jumping volume; the track LED dims until a trig commits the track to the destination Part, and the A/B scene slots stay put across the change.
• No BANK/PTN countdown — the SELECT BANK / SELECT PATTERN windows stop expiring after four seconds; press the key again (or pick a trig) to close them.

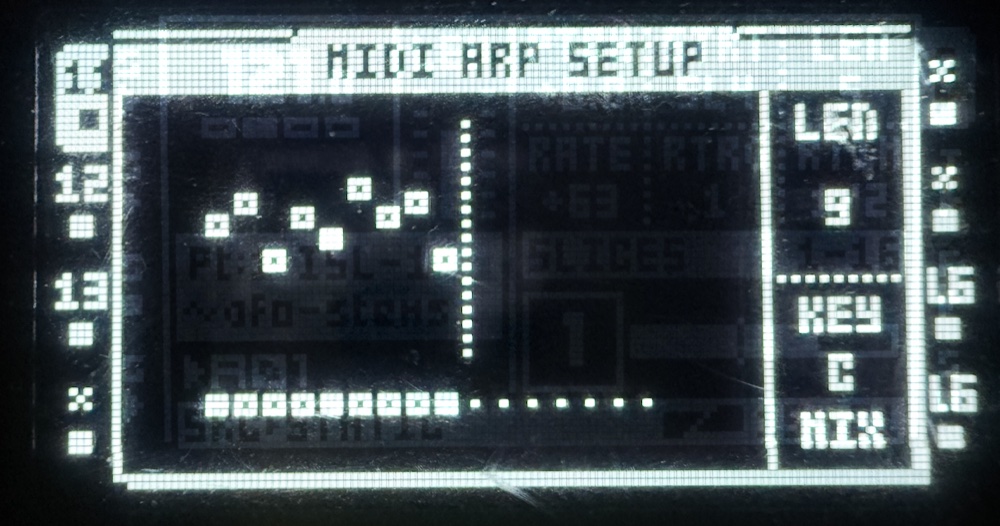

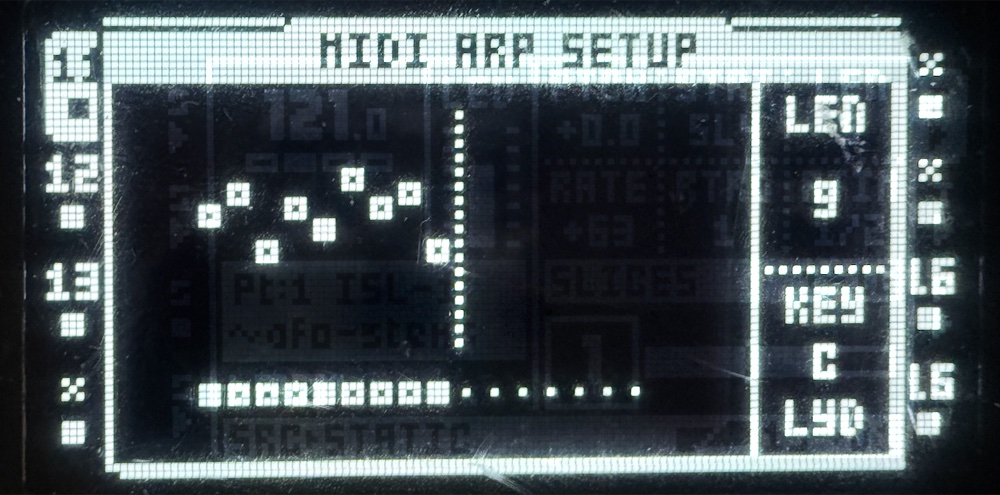

• Arp key scales — the MIDI arpeggiator's key-scale (ARP SETUP, F knob) gains 10 qualities beyond the stock major/minor: the five Greek modes, blues, phrygian-dominant, melodic-minor, octatonic and hirajoshi — 12 qualities × 12 roots. OFF/maj/min stay byte-identical to stock, so the extra scales only appear if you scroll past them.

The behaviour switches live in the PERSONALIZE menu, unchecked by default. The unit reports OCTAMAX_2c in the boot splash and under SYSTEM STATUS → OS VERSION.

How to build your flashable file →

Hi, I'm Maxolydian, an electronic artist based in Palermo, Italy.

For many years Elektron's instruments have been a cornerstone of my live performances. A big part of my artistic search is bringing my compositions to the stage while always leaving the door open to improvisation. The central challenge in that search has always been striking the right balance between automation and hands-on control. Too much automation makes things rigid and takes away the freedom to step off the script. At the same time, getting consistent results — in performance and in sound — demands a setup that is reliable and predictable, something a purely hardware rig makes genuinely difficult.

On that front Elektron hardware offers exceptional reliability and sound quality — qualities recognized the world over, and the reason each of their machines has been so successful. And yet the Octatrack is now more than 16 years old, and while its firmware has been updated several times, the way it works for live performance hasn't evolved substantially. Elektron's developers must surely feel swamped by all the feature requests from their users, and it must be hard to decide where to invest the team's precious time to deliver the most value.

That's why I started this project: to open up the possibility of experimenting with changes and small modifications that make my artistic search easier — and at the same time to feed my passion for the hardware and my hunger to learn from the best. In other words, for strictly educational purposes. I hope it proves useful to other artists on a similar search.

This project is strictly for personal use, and I honestly do not recommend updating the firmware of any Elektron unit with anything other than official firmware. It is a risky operation: it puts the product warranty in question and it can leave the unit unusable.

Nothing in this repository is endorsed by, supported by, or affiliated with Elektron. If you flash a modified OS you do so entirely at your own risk. The study of the firmware (static analysis) is harmless; writing a non-official OS to real hardware is not. If in doubt, don't flash — just read, disassemble, and learn.

Everything below was verified against the official OS 1.40C for Octatrack MKII — either from the firmware's own checksums, byte-exact decompilation, or direct disassembly. Full write-ups live in ARCHITECTURE.md (consolidated architecture) and NOTES.md (chronological log).

• CPU: Freescale/NXP ColdFire (likely MCF5445x, 32-bit, big-endian, ~266 MHz) — a 68000-family core, not ARM. The firmware corroborates it: it drives the on-chip ATA controller in the MBAR region (0xFC04_51xx) that characterizes the MCF5445x.
• Audio DSP: Freescale DSP56xxx, confirmed by the 24-bit word size used when the boot loader uploads the DSP program 3 bytes at a time.
• Storage: CompactFlash (FAT16/32) over the ColdFire's on-chip ATA controller, reached through the FlexBus.

Two RAM chips, recovered from a static scan of every real address-operand reference in the MAIN OS: a 128 MB main DDR at 0x40000000 and a separate ~1 MB metadata SRAM at 0x10000000 (a different chip-select). Full derivation in NOTES.md.

Elektron ships a ZIP with two transports of the same OS — a .bin and a .syx — both wrapping the same compressed container:

.bin  = [ELUP hdr][seed] + XOR-feedback( [len] + ELEK( aPLib( MAIN OS ) ) ) + checksum
.syx  = SysEx 7-bit(              ELEK( aPLib( MAIN OS ) )              )

• ELUP layer (.bin only): XOR obfuscation with feedback plus an additive checksum. Reimplemented in tools/make_bin.py / tools/bin_decode.py and validated by regenerating Elektron's own official .bin byte-for-byte.
• ELEK layer: a proprietary container whose payload is compressed with aPLib; it decompresses to the MAIN OS (1,112,560 bytes, loaded at base 0x40000400).
• No cryptographic signature on any layer — the OS is analyzable and, with recalculated checksums, rebuildable. That's why the format can be repacked at all; it is not a security bypass.
• The updater validates the OS (FUN_4007f748) with explicit error codes: -2 not a valid OS · -3 length · -4 checksum · -5 MK1 not allowed · -6 no downgrade.

• A proprietary preemptive microkernel (not MQX/ThreadX/VxWorks — banner ElektronOctatrack DPS-1). Task Control Blocks, per-priority ready queues, context switch via TRAP #0, blocking message queues, and a time slice driven by the ColdFire PIT timer (0xFC08_0000).
• The same message-queue pattern unifies the whole firmware: the ATA "async queues" and the audio "voice mailboxes" are kernel message queues.

• 8 track voices in the 0x80000000 shared-RAM window (base 0x800049d8, stride 0xA8).
• Control path: a sequencer trig writes a voice mailbox → a control-rate frame builder assembles a parameter frame into a double buffer → handshake to the DSP56xxx over MMIO at 0x20000000, which does the real-time synthesis.
• Work split: ColdFire = control (RTOS, sequencer, parameter assembly); DSP = signal (playback, time-stretch, filters, FX).

As a demonstration of the above, OCTAMAX can build an image with a few behavior changes, all OFF by default and toggled from the PERSONALIZE menu, so a freshly flashed unit is indistinguishable from stock until you opt in:

The behaviour switches are the ones that stay off until you opt in; the extra arp scales only appear if you scroll past OFF/maj/min, and the extra slots simply exist.

The code changes live in a free code cave and are reached by 6-byte jump detours. All three feature sets were developed against that same cave, so tools/build_all.py relocates their stubs around each other and then reads every block back out of the finished image to prove nothing was overwritten. The arp-scales work is written up in NOTES.md (search "ARP key-scale"); the behavior patches have a per-hunk table in sysex/README.md.

ARCHITECTURE.md      consolidated architecture (hardware, OS, memory map)
NOTES.md             chronological reverse-engineering log
FLASHING.md          safe-flashing guide + recovery net (read before flashing)
sysex/               the patch (source + JSON hunks) and the reproducible patcher
tools/               analysis + build scripts (Ghidra headless, emulators, packers)
fetch-os.sh          download + extract the official OS
setup.sh             clone/build elektron-firmware-tool into vendor/
analyze.sh           entropy + binwalk + strings + container unpack -> out/

Downloaded Elektron binaries (downloads/, out/, vendor/*.bin, *.syx, *.bin, *.pdf) are git-ignored on purpose — none of them are redistributed.

You need your own copy of the official OS. The build is fully reproducible: given the same stock file it emits a .syx byte-identical to the reference build.

• Python 3.8+
• A cross-assembler for the ColdFire (only needed to rebuild the stubs from source): m68k-elf-as, m68k-elf-ld, m68k-elf-objcopy (targeting -mcpu=5407).
• elektron-firmware-tool — cloned and built by setup.sh into vendor/. It's patched locally (see tools/elektron-firmware-tool.patch) so it can write the full 10-character version field and emit the rebuilt container.

./fetch-os.sh     # downloads the official OS 1.40C into downloads/ and extracts it
./setup.sh        # clones + patches + builds elektron-firmware-tool into vendor/

No firmware is distributed here, so there is nothing to download and flash directly. What the repository ships is the patch: the ColdFire code authored in this project, captured hunk by hunk in sysex/patches/, where each hunk carries its load address, the original bytes it expects and the replacement bytes. You apply it to your own copy of the official OS, and the result is byte-identical to the reference build.

Three commands, from a clean clone:

./fetch-os.sh          # downloads the official OS 1.40C from elektron.se into downloads/
./setup.sh             # builds elektron-firmware-tool into vendor/

python3 sysex/apply_patch.py \
    -i downloads/extracted/OCTATRACK_OS1.40C.syx \
    -p sysex/patches/octamax-2.0-beta.json \
    -o OCTAMAX_2c.syx --bin OCTAMAX_2c.bin

patch  : octamax-2.0-beta 2.0-BETA
target : Elektron Octatrack MKII OS 1.40C

[1/5] stock .syx checksum ok
[2/5] extracted section_3_MAIN_OS.bin (1,112,560 bytes)
[3/5] applied 223 hunks (4587 bytes)
[4/5] repacked -> OCTAMAX_2c.syx
      CF image  -> OCTAMAX_2c.bin
[5/5] output checksum ok — byte-identical to the reference build

That gives you both flashable files:

--bin is optional; without it only the .syx is written. To build the older behaviour-only 1.x patch instead, drop -p (it defaults to sysex/patches/maxolydian-r10.json).

The script aborts before writing anything if the stock checksum is wrong, if the original bytes under any hunk don't match (wrong firmware, or already patched), or if the patched image's checksum is off. The final line confirms your output matches the reference build bit for bit — if it does, you built exactly what was tested.

If you want to change the behavior (or just verify the JSON), rebuild the patched MAIN OS from the assembly sources. tools/build.py assembles every stub (tools/patch*.s), places them in the free code cave, and derives every detour target from the linker's symbol table (never hardcoded — a stale detour once froze the unit on the logo screen), verifying the original bytes at each site first:

python3 tools/build.py            # assembles the stubs -> out/mainos.bin

Then wrap out/mainos.bin back into a transport with the patched elektron-firmware-tool. Section 3 is the MAIN OS; -V MAXOLYDIAN sets the 10-character version field:

# -> .syx (for MIDI upgrade, or the reference artifact)
vendor/elektron-firmware-tool/elektron-firmware-tool \
    -i downloads/extracted/OCTATRACK_OS1.40C.syx \
    -c 3 out/mainos.bin -V MAXOLYDIAN \
    -o OCTATRACK_MAXOLYDIAN.syx

The .bin transport (flashed from the CF card via PROJECT → OS UPGRADE) is much faster than trickling the .syx over MIDI at 31250 baud. tools/make_bin.py wraps the ELEK container into an ELUP .bin. Its correctness is not assumed — it regenerates Elektron's own official .bin byte-for-byte before writing yours:

# dump the rebuilt ELEK container, then wrap it as an ELUP .bin
EFT_EMIT_CONTAINER=elek.bin vendor/elektron-firmware-tool/elektron-firmware-tool \
    -i downloads/extracted/OCTATRACK_OS1.40C.syx \
    -c 3 out/mainos.bin -V MAXOLYDIAN -o OCTATRACK_MAXOLYDIAN.syx

python3 tools/make_bin.py elek.bin -o OCTATRACK_MAXOLYDIAN.bin

Read FLASHING.md first — it covers the recovery net in detail. In short:

• The upgrade goes over MIDI DIN, not USB (the .syx path), or from the CF card (the .bin path, faster).
• Keep the official .syx at hand. [FUNC] + power on → [TRIG 3] (MIDI UPGRADE) recovers the unit even if the OS is corrupt — the bootloader is never touched by an OS update, which is why a brick here is soft and recoverable.
• Never cut power during UPDATING FLASH.
• Your CF card, projects and samples are not affected by an OS update.
• The PERSONALIZE settings persist across OS upgrades and power cycles (they live in the same battery-backed block as the stock settings). A Startup-Menu EMPTY RESET still clears them.

• Static analysis of the publicly distributed OS carries zero risk to the hardware and is the whole point of this project.
• EU: Directive 2009/24/EC Art. 5 (observe/study/test a program you lawfully use) and Art. 6 (decompilation for interoperability). Elektron's EULA may contain anti-RE clauses — a contractual matter separate from copyright.
• Private and educational use is low-risk. Redistributing modified binaries is a different question; this repo deliberately redistributes no Elektron binary.

OCTAMAX is an independent, unofficial, educational project. "Elektron" and "Octatrack" are trademarks of Elektron Music Machines MAV AB, used here only to identify the hardware under study. Not affiliated with or endorsed by Elektron.
